Smooth Rope Guidance for Elevators

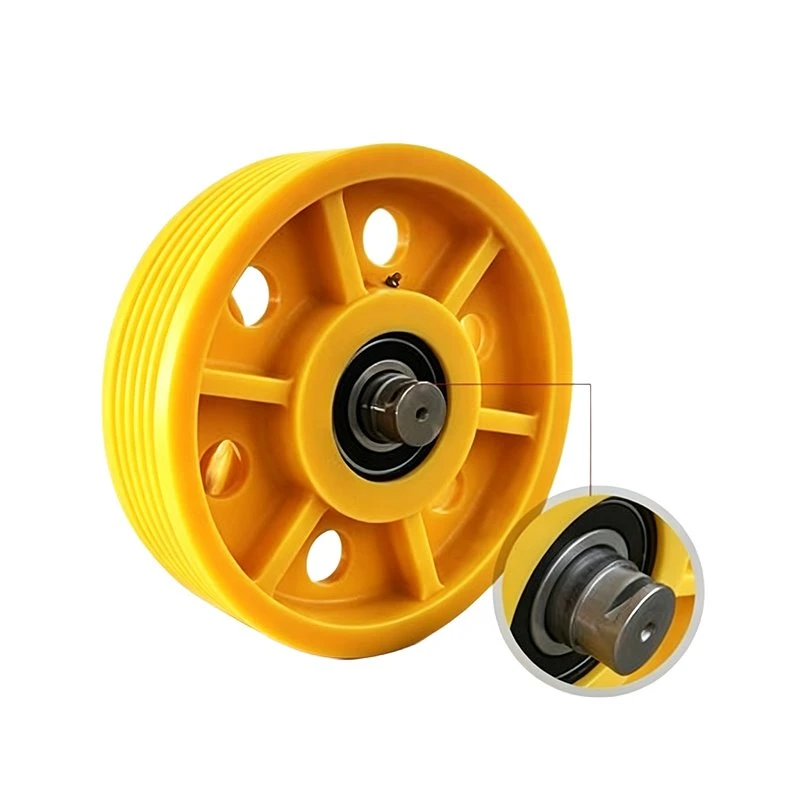

Elevator guide wheels redirect steel ropes within the elevator system. They are mounted on machine room support beams. Our elevator guide wheels are available in HT250 cast iron or MC nylon. MC nylon is lighter and produces less operating noise, making it suitable for high-speed elevators. The outer diameter is available in 320, 360, 400, 420, 450, 500, and 540 mm. The groove count ranges from 4 to 8 grooves. The U-shaped groove has a radius slightly larger than the rope radius. Available bearing models include 6210, 6212, 6213, and 6215. The shaft diameter ranges from Ø50 to Ø65 mm.
Precision Inspection and Skilled Team
Our production base is equipped with high-precision CMM measuring machines. Every batch of elevator guide wheels undergoes strict dimensional and runout inspections before shipment. Our factory has 150 workers, with more than 60% serving as skilled technicians. This elevator guide wheel reflects the precision of their workmanship. We use quality materials and precision machining processes to maintain consistent product quality. We also offer OEM and customized services. You can place orders according to your own drawings, and our R&D team can recommend design improvements when needed.
Full After-Sales and Global Trade Support
We provide comprehensive after-sales service for these elevator guide wheels. If you notice unusual wear or noise during operation, our engineers can help analyze the possible cause. We support EXW, FOB, and DDP trade terms. For DDP orders, we can arrange the logistics and delivery to your warehouse. We accept payments in both USD and RMB. Standard products require a 30% deposit, while custom products require a 50% deposit. We believe in open and honest cooperation and are committed to building long-term relationships with our customers.
Technical Parameters
|
Parameter |
Specification |
|
Outer Diameter |
320, 360, 400, 420, 450, 500, 540 mm |
|
Groove Count |
4, 5, 6, 7, 8 grooves |
|
Groove Form |
U-shape, R slightly larger than rope radius |
|
Material |
HT250 Cast Iron / MC Nylon |
|
Bearing Model |
6210, 6212, 6213, 6215 |
|
Mounting Type |
Fixed on machine room base with independent shaft |
