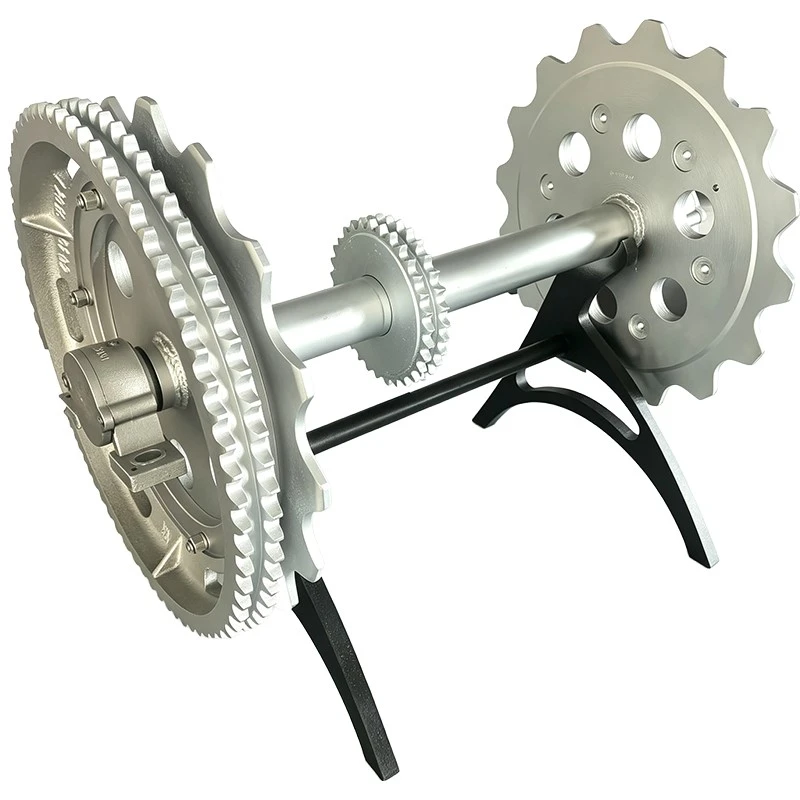

Escalator Main Drive Unit

The main drive is a core power transmission component of an escalator. It transfers motor power to the step chain, which moves the escalator steps. Our escalator main drive unit provides strong load capacity and is suitable for escalators used in public transportation and high-traffic locations. The shaft diameter ranges from Ø92 to Ø150 mm. It is compatible with step widths of 600 mm, 800 mm, and 1,000 mm. Available materials include Q235B, 16Mn, HT250, and 45# steel. The drive sprocket radial runout remains within 0.6 mm after assembly, while the end face runout remains within 0.5 mm. This level of precision helps ensure smooth operation and reduce chain wear.

Our factory covers 50 acres and has complete heat treatment and welding process control systems. This escalator main drive unit is manufactured under these strict production and quality control procedures. We can also add an auxiliary brake according to your requirements. The unit is suitable for both indoor and outdoor environments. Our quality team inspects each component at every production stage. We have established long-term relationships with global elevator brands, which encourages us to continuously improve product quality and production management. We accept third-party factory audits and product inspections. Our manufacturing experience enables us to meet demanding technical and quality requirements.
